identifying grapth flattening

Grapth flattening is a means of obscuring the flow of execution to prevent static review of reverse engineered code. Lets take a look at how to identify when control grapth flattening is being used.

Start by loading the sample emotet in miasm.

import sys
import subprocess
import graphviz
# import z3
import IPython

from miasm.analysis.binary import Container
from miasm.analysis.machine import Machine
from miasm.core.locationdb import LocationDB
# initsymbol table
loc_db=LocationDB()

# as we explore, we can name more memory locations
loc_db.add_location(offset=0x405c49, name="return_zero")
loc_db.add_location(offset=0x4063f0, name="flat_function")
fname="/home/user/Desktop/samples/emotet"

# read binary file
container=Container.from_stream(open(fname,'rb'), loc_db)

# getCPU abstraction
machine=Machine(container.arch)

# disassembly engine
mdis=machine.dis_engine(container.bin_stream, loc_db=loc_db)

The magic number of a binrary tells us what kind of file it is. This is an executable PE.

If we add the Entrypoint offset to the ImageBase address we know whereabouts the sample starts.

We can get all of this information from 'readpe'.

# readpe -H emotet
result=subprocess.run(["readpe", "-H", fname])
result
    DOS Header
        Magic number:                    0x5a4d (MZ)
        Bytes in last page:              144
        Pages in file:                   3
        Relocations:                     0
        Size of header in paragraphs:    4
        Minimum extra paragraphs:        0
        Maximum extra paragraphs:        65535
        Initial (relative) SS value:     0
        Initial SP value:                0xb8
        Initial IP value:                0
        Initial (relative) CS value:     0
        Address of relocation table:     0x40
        Overlay number:                  0
        OEM identifier:                  0
        OEM information:                 0
        PE header offset:                0xc0
    COFF/File header
        Machine:                         0x14c IMAGE_FILE_MACHINE_I386
        Number of sections:              4
        Date/time stamp:                 1599761546 (Thu, 10 Sep 2020 18:12:26 UTC)
        Symbol Table offset:             0
        Number of symbols:               0
        Size of optional header:         0xe0
        Characteristi

    cs:                 0x102
        Characteristics names
                                             IMAGE_FILE_EXECUTABLE_IMAGE
                                             IMAGE_FILE_32BIT_MACHINE
    Optional/Image header
        Magic number:                    0x10b (PE32)
        Linker major version:            12
        Linker minor version:            0
        Size of .text section:           0xa600
        Size of .data section:           0x1c00
        Size of .bss section:            0
        Entrypoint:                      0x5c20
        Address of .text section:        0x1000
        Address of .data section:        0xc000
        ImageBase:                       0x400000
        Alignment of sections:           0x1000
        Alignment factor:                0x200
        Major version of required OS:    6
        Minor version of required OS:    0
        Major version of image:          0
        Minor version of image:          0
        Major version of subsystem:      6
        Minor version of subsystem:      0
        Size of image:                   0x10000
        Size of headers:                 0x400
        Checksum:                        0
        Subsystem required:              0x2 (IMAGE_SUBSYSTEM_WINDOWS_GUI)
        DLL characteristics:             0x8740
        DLL characteristics names
                                             IMAGE_DLLCHARACTERISTICS_DYNAMIC_BASE
                                             IMAGE_DLLCHARACTERISTICS_NX_COMPAT
                                             IMAGE_DLLCHARACTERISTICS_NO_ISOLATION
                                             IMAGE_DLLCHARACTERISTICS_NO_SEH
                                             IMAGE_DLLCHARACTERISTICS_TERMINAL_SERVER_AWARE
        Size of stack to reserve:        0x100000
        Size of stack to commit:         0x1000
        Size of heap space to reserve:   0x100000
        Size of heap space to commit:    0x1000

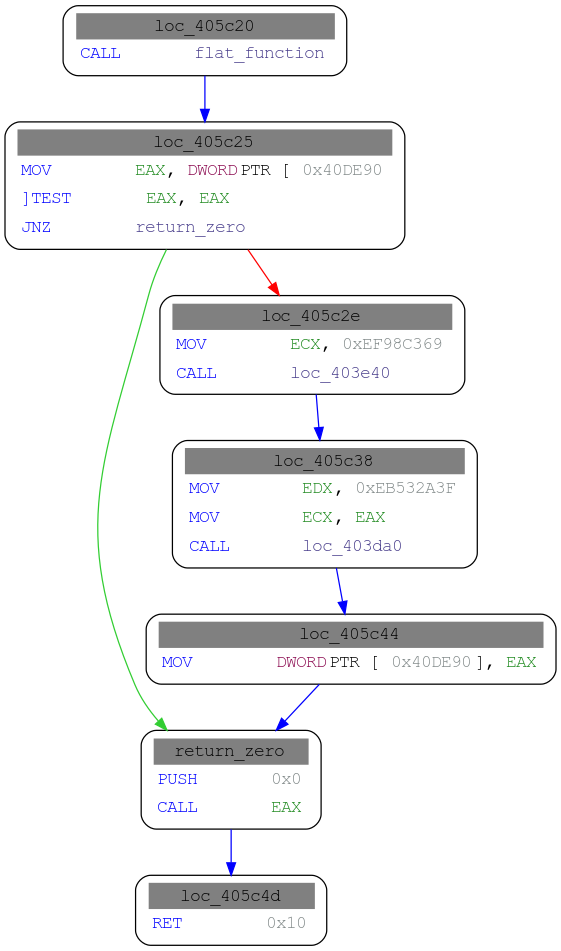

We can start exploring the control flow grapth at this calculated address.

'''
    Entrypoint:                      0x5c20
    ImageBase:                       0x400000

'''

entry_point=0x00405c20

# retriev eall basic blocks starting at entry point
asm_cfg=mdis.dis_multiblock(entry_point)

# display CFG
dot = asm_cfg.dot()
gvz=graphviz.Source(dot)
display(gvz)

alt text

Start with looking at calls and long jumps.

offset=0x4063f0

# retrieve all basic blocks starting at entry point
asm_cfg=mdis.dis_multiblock(offset)

# display CFG
dot = asm_cfg.dot()
gvz=graphviz.Source(dot)

# weird error will not display?
# save to file, convert to png
gvz.save("./flat_grapth.dot")

result=subprocess.run(["dot", "-Tsvg", "flat_grapth.dot", "-o", "flat_graph.svg"])

alt text

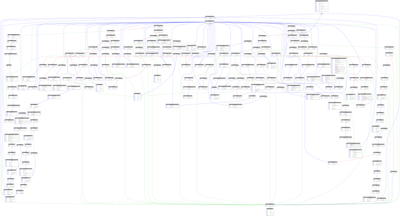

This CFG is "flattened" and highly complex. Which block runs is determined by a state variable-- a value in EAX.

We can determine the order of basic blocks by just running the code, or build some kind of solver to trace it statically, which we can discuss in the later posts.
